High Voltage Current Transformer

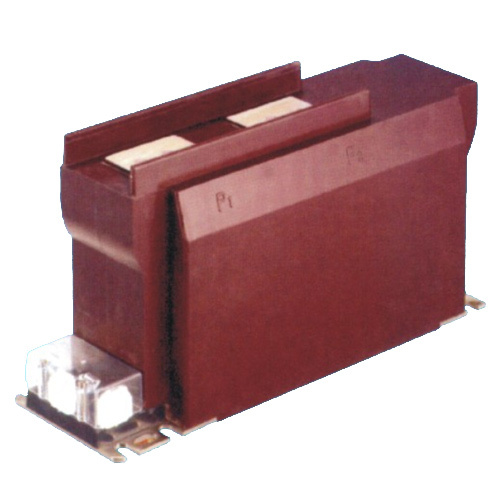

LZZBJ12-10/150b/4s current transformer

Item No.: LZZBJ12-10/150b/4s
The current transformer for epoxy resin casting the pillar structure of the fully closed.Suitable for indoor AC 50-60Hz,Rated voltage of 10kV and below the power system for the current use of energy measurment and relay protection.
Description
Description
Introduce

This product is the latest generation of high precision and high dynamic thermal stability,high-capacity product.Secondary winding of the number of 2-3,according to the different needs of any combination,applies KYN28A-12(GZS1)-type high-voltage withdrawable switchgear cabinet and other mid-cabinet.

Features
Resistant to pollution and humidity,but also suitable for tropical regions.
The transformer does not require special maintenance,just on a regular basis to remove surface dirt.
Completely closed due to current transformer with epoxy resin casting.
Small size,Suitable for any location,and installed in any direction.
Technical Parameter



TRANSDUCER
Rated insulation level 12/42/75kV
Load power factor 0.8(lag)
Rated secondary current 5A
Product standard GB1208
Safety factor
FS<10



Specification

Type LZZB12-10/150b/4s
Rated primary current Accuracy class Rated output Short-time thermal current Rated Dynamic current
20,30,40,50,75,100 0.2/0.2/5P10 10/10/30 150Iln 375Iln
0.2/0.2/5P15 10/20/20
0.2/0.2/5P10 10/10/15
0.2/5P10/10P15 10/10/15
0.5/5P10/10P20 10/10/10
150,200 0.2/0.2/5P10 10/10/30 31.5 80
0.2/0.2/5P15 10/10/20
0.2/0.2/5P10 10/10/15
0.2/5P10/10P15 10/10/15
0.5/5P10/10P20 10/10/10
300,400 0.2/0.2/5P10 10/10/30 45 112.5
0.2/0.2/5P15 10/15/20
0.2/0.2/5P10 10/15/15
0.2/5P10/10P15 10/15/20
0.5/5P10/10P20 10/15/15
500 0.2/0.2/5P10 10/10/30 63 130
0.2/0.2/5P15 10/15/20
0.2/0.2/5P10 10/15/15
0.2/5P10/10P15 10/15/20
0.5/5P10/10P20 15/15/15
600,800 0.2/0.2/5P10 10/10/30 63 130
0.2/0.2/5P15 10/15/20
0.2/0.2/5P10 10/15/15
0.2/5P10/10P15 10/15/20
0.5/5P10/10P20 10/15/15
1000 ,1200 ,1250 0.2/0.2/5P10 15/15/30 80 160
0.2/0.2/5P15 15/20/20
0.2/0.2/5P10 15/20/15
0.2/5P10/10P15 15/15/20
0.5/5P10/10P20 20/15/15

Dimensions



LZZB12-10/150b/4s



Accuracy test

24Hs online service
365Ds NON-Stop Production 20Ys Professional Manufacturers
Professional designer and manufacturer of current transformer,
cooperated with Siemens ,schneider Fuji electrical softbank LG samdsung.
