High Voltage Current Transformer

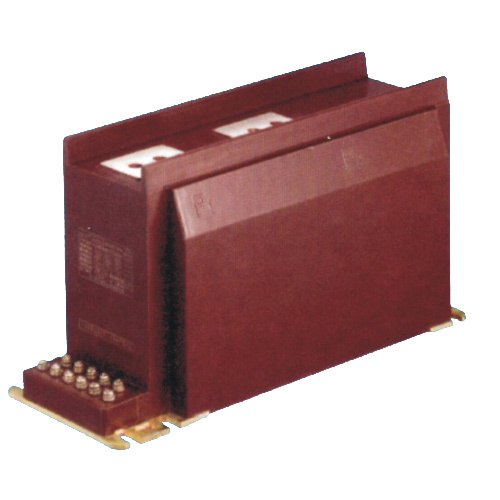

LZZBJ12-10(Q)/175b/4s current transformer

Item No.: LZZBJ12-10(Q)/175b/4s
The current transformer for epoxy resin casting the pillar structure of the fully closed.
Description
Description
Introduce

The use of advanced materials and processes,suitable for indoor AC 50-60Hz,Rated voltage of 10kV and below the power system for the current use of energy measurment and relay protection.

Features
This product is the latest generation of high precision and high dynamic thermal stability,high-capacity product.
Secondary winding of the number of 2-3,according to the different needs of any combination.
Applies KYN28A-12(GZS1)-type high-voltage withdrawable switchgear cabinet and other mid-cabinet.
Technical Parameter



TRANSDUCER
Rated insulation level 12/42/75kV
Load power factor 0.8(lag)
Rated secondary current 5A/1A
Product standard GB1208
Safety factor
FS<10



Specification



Type Rated primary current Accuracy class Rated output 1second heat current Rated Dynamic current
LZZB12-10(Q)/175b/4s 20,30,40,50,75,100 0.2S/0.2/5P10 10/10/40 150Iln 375Iln
0.5S/0.5/5P15 10/15/30
0.5S/0.5/5P20 10/15/20
0.2S/5P10/10P15 10/20/20
0.5S/5P10/10P20 10/20/15
150,200 0.2S/0.2/5P10 10/10/40 31.5 80
0.5S/0.5/5P15 10/15/30
0.5S/0.5/5P20 10/15/20
0.2S/5P10/10P15 10/20/20
0.5S/5P10/10P20 10/20/15
300,400 0.2S/0.2/5P10 10/10/40 45 11205
0.5S/0.5/5P15 10/15/30
0.5S/0.5/5P20 10/15/20
0.2S/5P10/10P15 10/20/20
0.5S/5P10/10P20 10/20/15
500 0.2S/0.2/5P10 10/10/40 63 130
0.5S/0.5/5P15 10/15/30
0.5S/0.5/5P20 10/15/20
0.2S/5P10/10P15 10/20/20
0.5S/5P10/10P20 10/20/15
600,800 0.2S/0.2/5P10 10/10/40 63 130
0.5S/0.5/5P15 10/15/30
0.5S/0.5/5P20 10/15/20
0.2S/5P10/10P15 10/20/20
0.5S/5P10/10P20 10/20/15
1000,1200,1250 0.2S/0.2/5P10 15/15/40 80 160
0.5S/0.5/5P15 15/30/30
0.5S/0.5/5P20 15/30/20
0.2S/5P10/10P15 15/30/30
0.5S/5P10/10P20 30/30/20
1500 0.2S/0.2/5P10 15/15/40 100 160
0.5S/0.5/5P15 15/30/40
0.5S/0.5/5P20 15/30/30
0.2S/5P10/10P15 15/30/30
0.5S/5P10/10P20 30/30/20
2000 0.2S/0.2/5P10 15/15/40 100 160
0.5S/0.5/5P15 15/30/40
0.5S/0.5/5P20 15/30/30
0.2S/5P10/10P15 15/30/30
0.5S/5P10/10P20 30/30/20
2500 0.2S/0.2/5P10 20/20/40 100 160
0.5S/0.5/5P15 20/40/40
0.5S/0.5/5P20 20/40/30
0.2S/5P10/10P15 20/30/30
0.5S/5P10/10P20 40/30/20
3000,3150 0.2S/0.2/5P10 20/20/40 100 160
0.5S/0.5/5P15 20/40/30
0.5S/0.5/5P20 20/40/20
0.2S/5P10/10P15 20/20/20
0.5S/5P10/10P20 40/20/15

Dimensions



LZZQB6-10Q



Accuracy test

24Hs online service
365Ds NON-Stop Production 20Ys Professional Manufacturers
Professional designer and manufacturer of current transformer,
cooperated with Siemens ,schneider Fuji electrical softbank LG samdsung.
Tel:13968747975
Add:(Zhejiang Lierde Relay Co., Ltd.) Xinguang Ind. Zone, Liushi Town, Wenzhou, Zhejiang, China
Send your message to us
