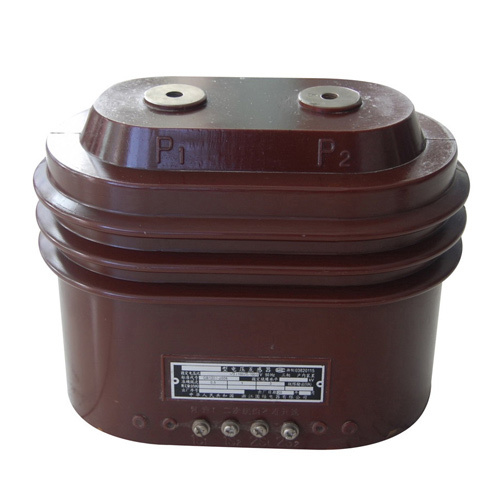

LZZJ-10Q current transformer

Item No.: LZZJ-10Q
LZZJ-10(Q)-type current transformer in the power system of rated frequency 50Hz rated voltage of 10kV and below indoor installations.Used for electrical measurment and electrical protection.
Description
Description
Introduce

LZZJ-10(Q)-type current transformer in the power system of rated frequency 50Hz rated voltage of 10kV and below indoor installations.Used for electrical measurment and electrical protection.

This type of transformer is the pillar structure .The epoxy resin casting is a big climb from the enhanced insulation.

Features
Dirty resistant to moisture,suitable for heavy pollution and high humidity areas.
Is fully enclosed cast structure.The product has a high dynamic and thermal stability.
Suitable for short-circuit current system.
Best suited to be mounted on the fixed switchgear XGN-10.
Technical Parameter



TRANSDUCER
Rated insulation level 12/42/75kV
Load power factor 0.8(lag)
Rated primary current
5-1000A
Rated secondary current 5A/1A
Product standard GB1208
Safety factor
FS<10



Specification



Rated primary current Rated output Short-time themal current(kA)
0.2S,0.2,0.5 10P10 kA(rms) Duration
5 10 15 0.5 2
10 1
15 1.5
20 2
30 3
40 4
50 5
75 8
100 10
150 16
200 20 4
300 20
400 20
500 15 15 25
600 25
800 32
1000 20 25 32

Dimensions



Outline Dimensions
5-200/5A 300-1000/5A



Accuracy test
