MBO Type Current Transformer

Item No.: MBO
High precision (up to 0.2S level), humanized transparent cover and lead-sealed hole design make CT very easy to identify and perfect after long-term use.
Description
Description
Introduce

MBO Series (9 frames) perfect designed plastic case current transformer, advanced snap on body, high accuracy (up to Class 0.2S),humanization transparent cover and lead seal hole design makes the CT very easy to indentify after long term use and perfect anti-stealing electricity.

Applications
Current measurement, monitoring and piotection for electrical wiring and equipment.
Current and power measurement for electric motors, lighting,air compressor, heating and ventilation system.
Air-condition equipment and Current, power and energy monitoring device.
Relay protection device.
Features
Safe, easy to install, portable.
Wide inner window, allowing clamping of big cables or bus-bars.
Wide range of sizes to accommodate all the existing installations.
Technical Parameter



Electrical Parameter Mechanical Parameter
Frequency 50/60Hz Case PC/UL94-V0
Rated Input 5A-3000A Bobbin PBT
Measuring range 5%In-120%In Core Silicon steel
Rated Output 1A,5A Construction Screw
Ratio Voltage 0.72KV (AC) Operating Temp -25℃~+75℃
Dielectric strength 3.0KV/1mA/1min Operating Humidity ≤85%
Insulation Resistance DC500V/100MΩ min Output Connection Terminal



Specification



Type Current Ratio  Burden(VA) Rated Frequency(Hz)
class:0.5 class:1.0

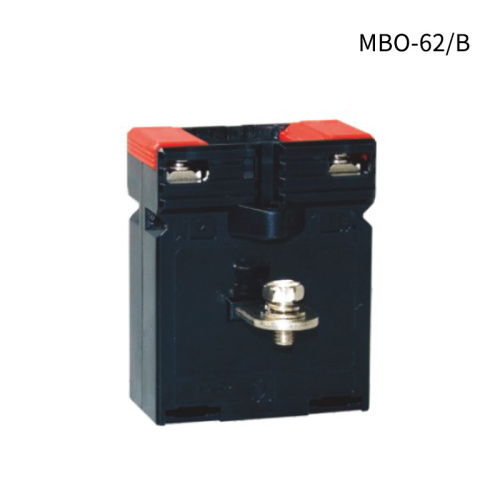

MBO-62/B 5/5A 1.5 2.5 50/60
10/5A 1.5 2.5 50/60
15/5A 1.5 2.5 50/60
20/5A 1.5 2.5 50/60
25/5A 1.5 2.5 50/60
30/5A 1.5 2.5 50/60
40/5A 1.5 2.5 50/60
50/5A 1.5 2.5 50/60
60/5A 1.5 2.5 50/60
75/5A 1.5 2.5 50/60
100/5A 1.5 2.5 50/60
150/5A 1.5 2.5 50/60
200/5A 1.5 2.5 50/60



Type Current Ratio  Burden(VA) Rated Frequency(Hz)
class:0.5 class:1.0

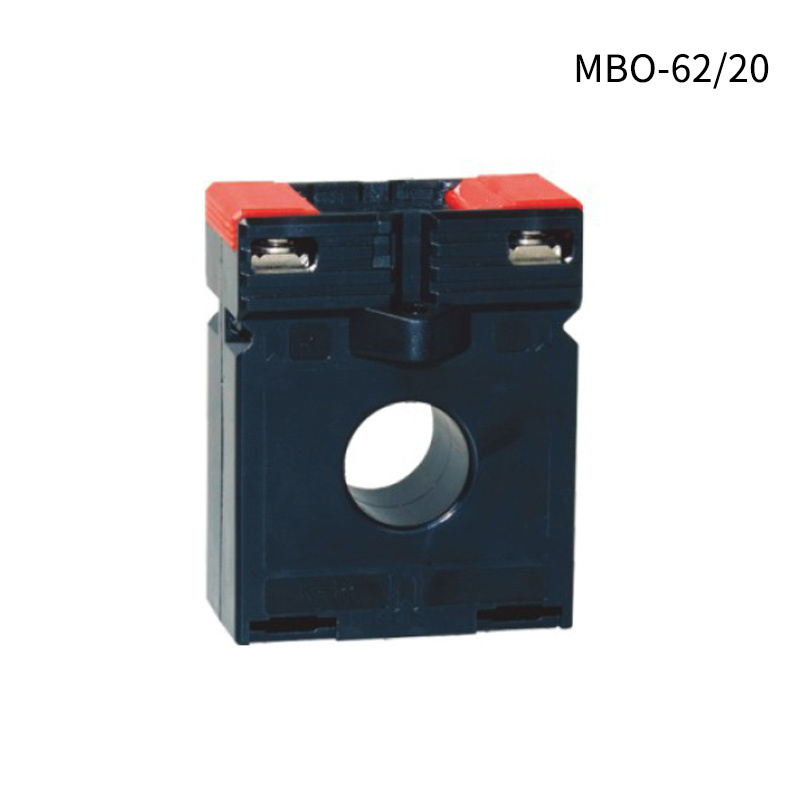

MBO-62/20 30/5A 1.5(4T) 2.5(4T) 50/60
40/5A 1.5(4T) 2.5(4T) 50/60
50/5A 1.5(2T) 2.5(2T) 50/60
60/5A 1.5(2T) 2.5(2T) 50/60
75/5A 1.5(2T) 1.5 50/60
80/5A 1.5(2T) 1.5 50/60
100/5A 1.5 2.5 50/60
150/5A 2.5 3.75 50/60
200/5A 2.5 3.75 50/60



Type Current Ratio  Burden(VA) Rated Frequency(Hz)
class:0.5 class:1.0

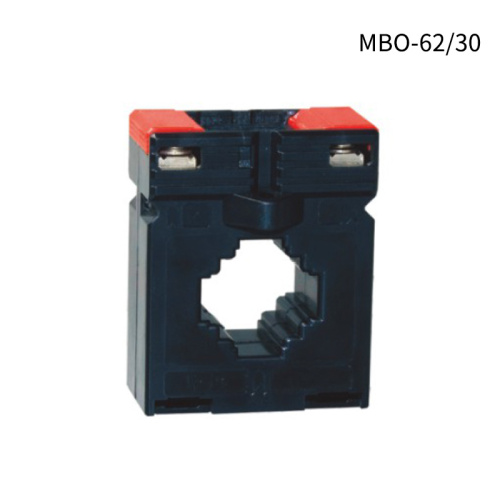

MBO-62/30 30/5A - 2.5(4T) 50/60
40/5A - 2.5(4T) 50/60
50/5A - 2.5(2T) 50/60
60/5A - 2.5(2T) 50/60
75/5A - 2.5(2T) 50/60
100/5A 1.5 2.5 50/60
150/5A 1.5 3.75 50/60
200/5A 2.5 5 50/60
250/5A 2.5 5 50/60
300/5A 3.75 5 50/60



Type Current Ratio  Burden(VA) Rated Frequency(Hz)
class:0.5 class:1.0
MBO-62/40 60/5A 1.5(3T) 3.75(3T) 50/60
75/5A 1.5(2T) 3.75(2T) 50/60
100/5A 1 2 50/60
150/5A 1.5 2.5 50/60
200/5A 2.5 3.75 50/60
250/5A 2.5 3.75 50/60
300/5A 3.75 3.75 50/60
400/5A 3.75 5 50/60



Type Current Ratio  Burden(VA) Rated Frequency(Hz)
class:0.5 class:1.0
MBO-30 50/5A - 1.5(2T) 50/60
60/5A - 1.5(2T) 50/60
75/5A - 1.5 50/60
100/5A 1.5 2.5 50/60
150/5A 1.5 2.5 50/60
200/5A 2.5 5 50/60
250/5A 3.75 5 50/60
300/5A 5 5 50/60
400/5A 5 5 50/60



Type Current Ratio  Burden(VA) Rated Frequency(Hz)
class:0.5 class:1.0

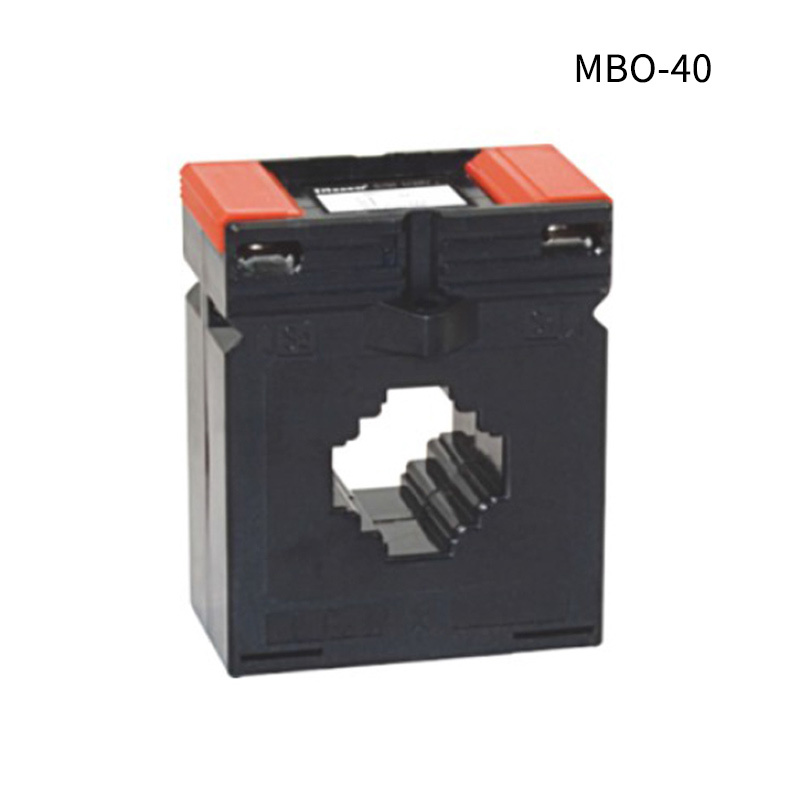

MBO-40 100/5A 1.5 2.5 50/60
150/5A 1.5 2.5 50/60
200/5A 2.5 5 50/60
250/5A 3.75 5 50/60
300/5A 5 5 50/60
400/5A 5 5 50/60
500/5A 5 7.5 50/60
600/5A 5 7.5 50/60



Type Current Ratio  Burden(VA) Rated Frequency(Hz)
class:0.5 class:1.0

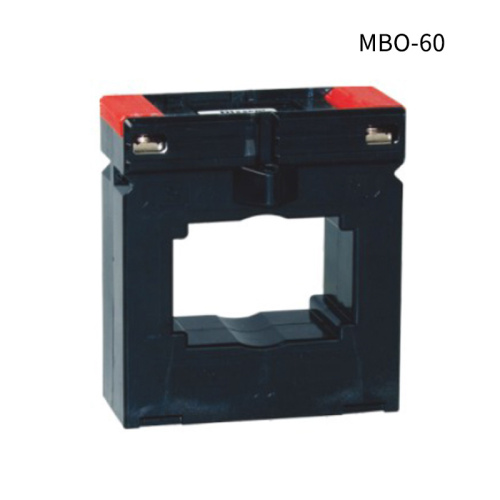

MBO-60 300/5A 1.5 2.5 50/60
400/5A 2.5 5 50/60
500/5A 5 10 50/60
600/5A 5 10 50/60
750/5A 5 10 50/60
800/5A 5 10 50/60
1000/5A 5 15 50/60
1200/5A 5 15 50/60



Type Current Ratio  Burden(VA) Rated Frequency(Hz)
class:0.5 class:1.0
MBO-70 400/5A 2.5 5 50/60
500/5A 5 10 50/60
600/5A 5 10 50/60
750/5A 5 10 50/60
800/5A 5 10 50/60
1000/5A 5 10 50/60
1200/5A 5 10 50/60
1500/5A 5 15 50/60
1600/5A 5 15 50/60



Type Current Ratio  Burden(VA) Rated Frequency(Hz)
class:0.5 class:1.0
MBO-70 400/5A 2.5 5 50/60
500/5A 5 10 50/60
600/5A 5 10 50/60
750/5A 5 10 50/60
800/5A 5 10 50/60
1000/5A 5 10 50/60
1200/5A 5 10 50/60
1500/5A 5 15 50/60
1600/5A 5 15 50/60



Type Current Ratio  Burden(VA) Rated Frequency(Hz)
class:0.5 class:1.0

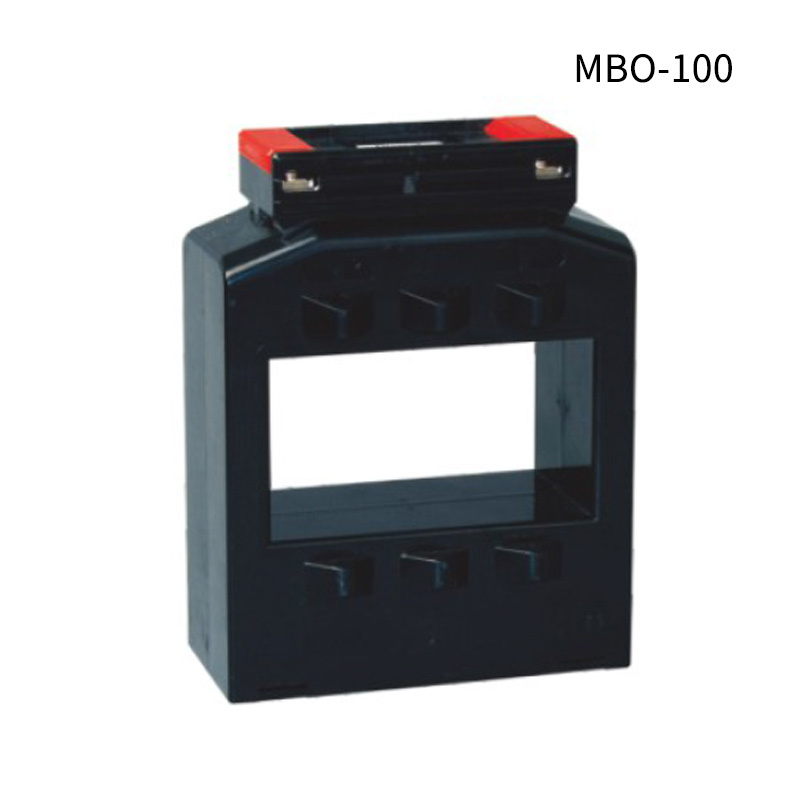

MBO-100 750/5A 5 10 50/60
800/5A 5 10 50/60
1000/5A 5 15 50/60
1200/5A 10 15 50/60
1500/5A 10 15 50/60
1600/5A 10 15 50/60
2000/5A 10 15 50/60
2250/5A 10 15 50/60
2500/5A 10 15 50/60
3000/5A 10 15 50/60



Dimensions



MBO-62/B MBO-62/20
MBO-62/30 MBO-62/40
MBO-30 MBO-40
MBO-60 MBO-70
MBO-100




Accuracy test

Installation method

24Hs online service
365Ds NON-Stop Production 20Ys Professional Manufacturers
Professional designer and manufacturer of current transformer,
cooperated with Siemens ,schneider Fuji electrical softbank LG samdsung.
