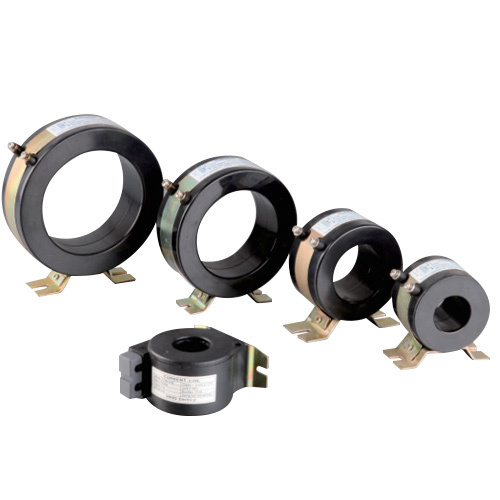

RCT Current Transformer

Item No.: RCT
The RCT series current transformers can test, control, display and record the operation of electrical equipment and protect the equipment from damage.
Description
Description
Introduce

RCT range of current transformers can be applied to test,control,display and record the running of the electrical equipment, and to protect the equipment against the damage,in the AC circuit with the rated voltage value below 720V and the frequency of 50-60Hz.The product can be also applied to form a complete set of mine transformer. RCT have larger capacity.With the method of fixed installation.

Applications
Current measurement, monitoring and piotection for electrical wiring and equipment.
Current and power measurement for electric motors, lighting,air compressor, heating and ventilation system.
Air-condition equipment and Current, power and energy monitoring device.
Relay protection device.
Features
Safe, easy to install, portable.
Wide inner window, allowing clamping of big cables or bus-bars.
Wide range of sizes to accommodate all the existing installations.
Technical Parameter



Electrical Parameter Mechanical Parameter
Frequency 50/60Hz Case PC/UL94-V0
Rated Input 1A-5000A Bobbin PBT
Measuring range 5%In-120%In Core Silicon steel
Rated Output 1A,5A Construction Screw
Ratio Voltage 0.72KV (AC) Operating Temp -25℃~+75℃
Dielectric strength 3.0KV/1mA/1min Operating Humidity ≤85%
Insulation Resistance DC500V/100MΩ min Output Connection Terminal



Specification



Type Ratio(A) Burden(VA) Frequency(Hz)
class:0.5 class:1.0
RCT-25 50/5A - 2.5(2T) 50/60
60/5A - 2.5(2T) 50/60
75/5A 2.5(2T) 1.5 50/60
100/5A 1.5 2.5 50/60



Type Ratio(A) Burden(VA) Frequency(Hz)
class:0.5 class:1.0
RCT-35 30/5A - - 50/60
50/5A - 2.5(2T) 50/60
60/5A - 2.5(2T) 50/60
80/5A - 1.5 50/60
100/5A 1.5 2.5 50/60
120/5A 2.5 3.75 50/60
150/5A 2.5 3.75 50/60
200/5A 3.75 5 50/60
250/5A 3.75 5 50/60
300/5A 5 10 50/60



Type Ratio(A) Burden(VA) Frequency(Hz)
class:0.5 class:1.0
RCT-60 300/5A 2.5 5 50/60
400/5A 5 5 50/60
500/5A 5 7.5 50/60
600/5A 5 7.5 50/60
800/5A 5 7.5 50/60
1000/5A 10 15 50/60
1200/5A 10 15 50/60



Type Ratio(A) Burden(VA) Frequency(Hz)
class:0.5 class:1.0
RCT-90 800/5A 5 10 50/60
1000/5A1 10 15 50/60
1200/5A 10 15 50/60
1500/5A 10 15 50/60
1600/5A 10 15 50/60



Type Ratio(A) Burden(VA) Frequency(Hz)
class:0.5 class:1.0
RCT-110 1000/5A 10 15 50/60
1200/5A 10 15 50/60
1500/5A 15 20 50/60
1600/5A 15 20 50/60
2000/5A 15 20 50/60
2500/5A 15 20 50/60
3000/5A 15 20 50/60



Dimensions

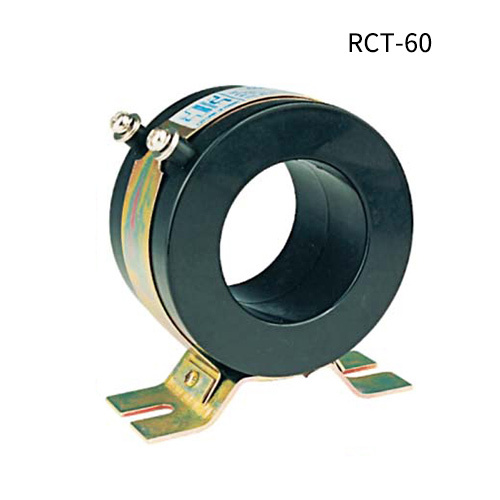

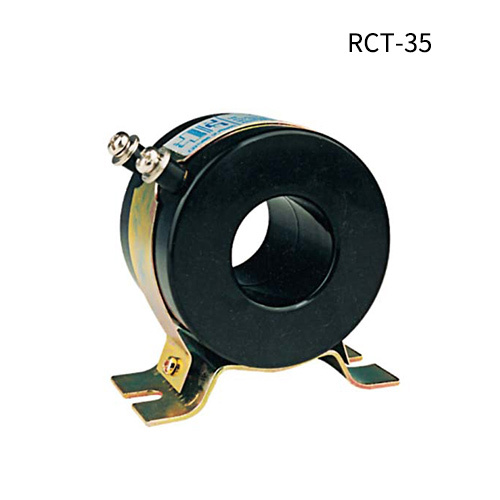

RCT-25 RCT-35

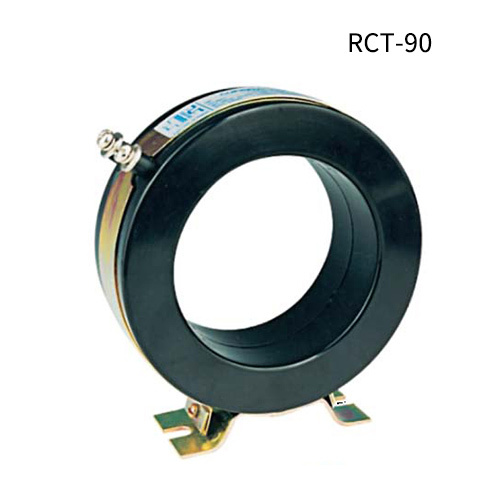

RCT-60 RCT-90

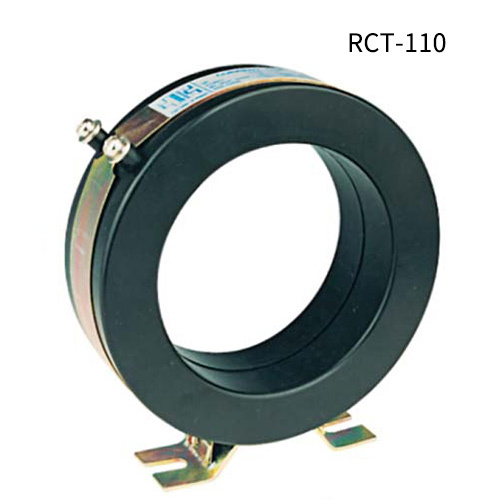

RCT-110


Accuracy test

24Hs online service
365Ds NON-Stop Production 20Ys Professional Manufacturers
Professional designer and manufacturer of current transformer,
cooperated with Siemens ,schneider Fuji electrical softbank LG samdsung.
