Home > Current Transformer

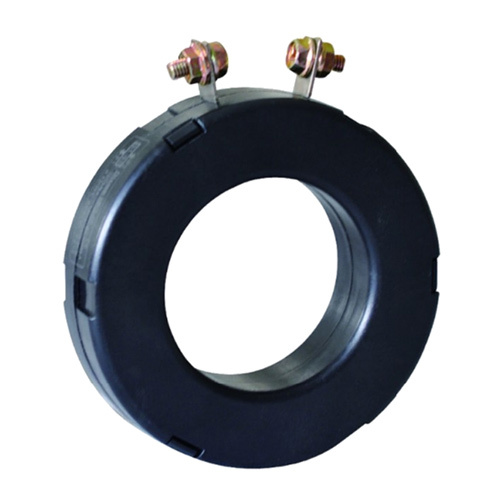

RS Type Current Transformer
RS Type Current Transformer RS Type Current Transformer RS Type Current Transformer
  • RS Type Current Transformer

RS Type Current Transformer

Item No.: RS
The RS series current transformers test, control, display and record the operation of electrical equipment and protect the equipment from damage.
Add to Inquiry
Description
Description
Introduce

RS series current transformers can be used in AC circuits with rated voltage below 720V and frequency of 50-60Hz.

This product can also be used for matching mine transformers.

High precision protection level and larger capacity.


Applications
Current measurement, monitoring and piotection for electrical wiring and equipment.
Current and power measurement for electric motors, lighting,air compressor, heating and ventilation system.
Air-condition equipment and Current, power and energy monitoring device.
Relay protection device.
Features
Safe, easy to install, portable.
Wide inner window, allowing clamping of big cables or bus-bars.
Wide range of sizes to accommodate all the existing installations.
Technical Parameter



Rated Frequency 50/60Hz
Withstand voltage AC3kV(1min)
Rated thermal current 60ln
Dynamic stability current 2.5lth
Rated voltage  AC0.72KV
Burden 1.2ln
Operating temperature range -10°C-50°C
Prevent combustion level V0
Accuracy limit class FS5
Secondary current 5A,1A



Specification



Type Ratio(A) Burden(VA)
class:0.5 class 1.0
RS-30 30/5 1(2T) 1.0
40/5 1(2T) 1.0
50/5 1.5(2T) 1.5
75/5 1.0 1.5
80/5 1.0 1.5
100/5 1.5 2.5
125/5 1.5 2.5
150/5 1.5 2.5



Type Ratio(A) Burden(VA)
class:0.5 class 1.0
RS-40 100/5 3.75 7.5
125/5 5.0 7.5
150/5 5.0 7.5
160/5 5.0 7.5
200/5 5.0 10
250/5 5.0 10
300/5 7.5 12.5



Type Ratio(A) Burden(VA)
class:0.5 class 1.0
RS-50 300/5 10 15
400/5 15 15
500/5 15 20
600/5 15 20
800/5 20 25



Type Ratio(A) Burden(VA)
class:0.5 class 1.0
RS-65 500/5 15 15
600/5 15 20
800/5 15 20
1000/5 15 20
1200/5 15 20
1500/5 15 20
1600/5 15 20



Type Ratio(A) Burden(VA)
class:0.5 class 1.0
RS-87 800/5 20 20
1000/5 20 25
1200/5 20 25
1500/5 20 25
1600/5 20 25
2000/5 20 30



Type Ratio(A) Burden(VA)
class:0.5 class 1.0
RS-110 1500/5 20 20
1600/5 20 25
2000/5 20 25
2500/5 30 30
3000/5 30 30
3200/5 30 30



Type Ratio(A) Burden(VA)
class:0.5 class 1.0
RS-140 3000/5 30 30
3500/5 30 30
4000/5 30 40
5000/5 30 50
6000/5 30 50



Dimensions



RS-30 RS-40
RS-50 RS-65
RS-87 RS-110
RS-140


Accuracy test



24Hs online service
365Ds NON-Stop Production 20Ys Professional Manufacturers
Professional designer and manufacturer of current transformer,
cooperated with Siemens ,schneider Fuji electrical softbank LG samdsung.
