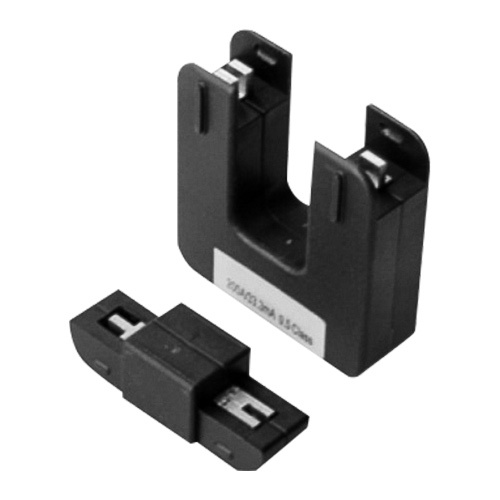

Split Core Current Transformer

SCT Type Current Transformer

Item No.: SCT
SCT range of split core current transformers have been specially designed to facilitate their installation in new or already existing net works.
Description
Description
Introduce

SCT range of split core current transformers have been specially designed to facilitate their installation in new or already existing net works.

They may be installed without opening any cable or bus-bar circuit. An ineternal precision resistor across the secondary winding of the ct provides
a low safe voltage output.


Applications
Current measurement, monitoring and piotection for electrical wiring and equipment.
Current and power measurement for electric motors, lighting,air compressor, heating and ventilation system.
Air-condition equipment and Current, power and energy monitoring device.
Relay protection device.
Features
The structure of the self-locking, safe, easy to install, portable.
Wide inner window, allowing clamping of big cables or bus-bars.
Wide range of sizes to accommodate all the existing installations.
Technical Parameter



Electrical Parameter Mechanical Parameter
Frequency 50-2KHz Case PA/UL94-V0
Rated Input 5A-200A Bobbin PBT
Measuring range 10%In-120%In Core Silicon steel
Rated Output 0.333V(AC)or 0-500mA Internal structure Epoxy
Ratio ≤ ± 1.0% Construction Tie
Phase angle ≤ ±60min Operation Temp -25oC~+75oC
Dielectric strangth 2.5KV/1mA/1min Operating Humidity ≤85%
Insulation Resistance DC500V/100MΩ min Output Connection UL1015 20AWG Wire2.5m



Specification



SCT-19
Current Ratio 50A/10mA 100A/20mA 200A/33.3mA 200A/0.333V
Primary Current 50A 100A 200A 200A
Max.Current 60A 120A 240A 240A
Output 10mA 20mA 33.3mA 333mV
Load Resistance 50Ω 20Ω /
Class 0.5/1.0
Turns Ratio 208.3340278 208.3340278 250.0006944 /
Protection Level 7.5V0-P 7.5V0-P 7.5V0-P 7.5V0-P
Insulation Category CATIII
Operating Condition -20℃~+50℃,≤85%RH,No condensation,IN-house&Any direction installable
Storage Condition -30℃~+50℃,≤85%RH,No condensation



MODEL SCT-32
Current Ratio 200A/40mA 300A/60mA 400A/40mA 600A/60mA 400A/0.333V
Primary Current 200A 300A 400A 600A 200A
Max.Current 240A 360A 480A 720A 240A
Output 40mA 60mA 40mA 60mA 333mV
Load Resistance 50Ω 25Ω /
Class 0.5/1.0
Turns Ratio 208.3340278 208.3340278 10000:1 10000:1 /
Protection Level 7.5V0-P 7.5V0-P 7.5V0-P 7.5V0-P 7.5V0-P
Insulation Category CATIII
Operating Condition -20℃~+50℃,≤85%RH,No condensation,IN-house&Any direction installable
Storage Condition -30℃~+50℃,≤85%RH,No condensation

MODEL SCT-52
Current Ratio 500A/25mA 600A/30mA 1000A/50mA 1500A/75mA 800A/0.333V
Primary Current 500A 600A 1000A 1500A 800A
Max.Current 600A 720A 1200A 1800A 960A
Output 25mA 30mA 50mA 75mA 333mV
Load Resistance 50Ω 25Ω /
Class 0.5/1.0
Turns Ratio 20000:1 20000:1 20000:1 20000:1 /
Protection Level 7.5V0-P 7.5V0-P 7.5V0-P 7.5V0-P 7.5V0-P
Insulation Category CATIII
Operating Condition -20℃~+50℃,≤85%RH,No condensation,IN-house&Any direction installable
Storage Condition -30℃~+50℃,≤85%RH,No condensation

Please contact us for more models and specifications.



Dimensions

SCT-19
SCT-32
SCT-52

Accuracy test
