Current Transformer

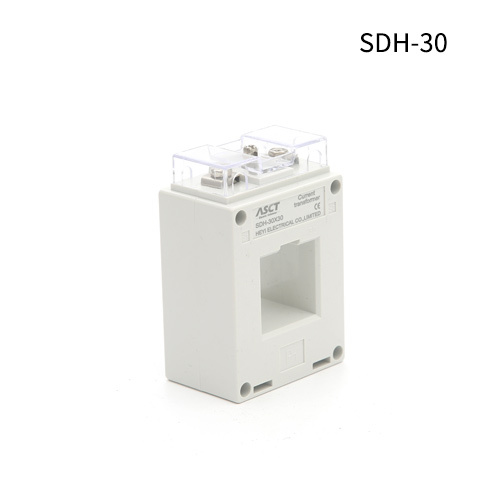

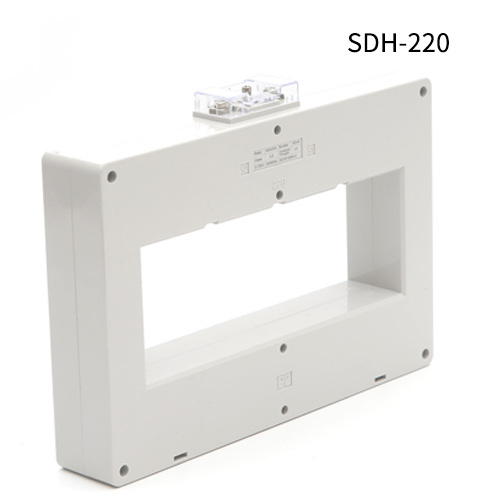

SDH Type Current Transformer

Item No.: SDH
SDH series current transformers can be used to test, control, display and record the operation of electrical equipment and protect equipment from damage.
Description
Description
Introduce

In the AC circuit with rated voltage lower than 720V and frequency of 50-60Hz, this product can also be used for matching mine transformers.

Applications
Current measurement, monitoring and piotection for electrical wiring and equipment.
Current and power measurement for electric motors, lighting,air compressor, heating and ventilation system.
Air-condition equipment and Current, power and energy monitoring device.
Relay protection device.
Features
The structure of the self-locking, safe, easy to install, portable.
Wide inner window, allowing clamping of big cables or bus-bars.

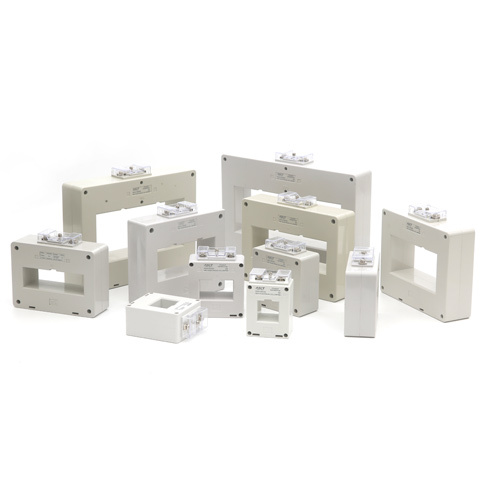

Wide range of sizes to accommodate all the existing installations.
Technical Parameter



Electrical Parameter Mechanical Parameter
Frequency 50/60Hz Case PC/UL94-V0
Rated Input 1A-5000A Bobbin PBT
Measuring range 5%In-120%In Core Silicon steel
Rated Output 1A , 5A Internal structure Screw
Rated Voltage 0.72KV(AC) Construction -25℃~+75℃
Dielectric strength 3.0KV/1mA/1min Operating Humidity ≤85%
Insulation Resistance DC500V/100MΩ min Output Connection Terminal



Specification



Type Ratio(A) Burden(VA) Frequency(Hz)
class:0.5 class:1.0
SDH-40 150/5A 2.5 5 50/60
200/5A 5 5 50/60
250/5A 5 5 50/60
300/5A 5 5 50/60
400/5A 5 5 50/60
500/5A 10 10 50/60
600/5A 10 10 50/60



Type Ratio(A) Burden(VA) Frequency(Hz)
class:0.5 class:1.0
SDH-50 200/5A 5 5 50/60
250/5A 5 5 50/60
300/5A 5 5 50/60
400/5A 5 5 50/60
500/5A 5 5 50/60
600/5A 10 10 50/60
750/5A 10 10 50/60
800/5A 10 10 50/60



Type Ratio(A) Burden(VA) Frequency(Hz)
class:0.5 class:1.0

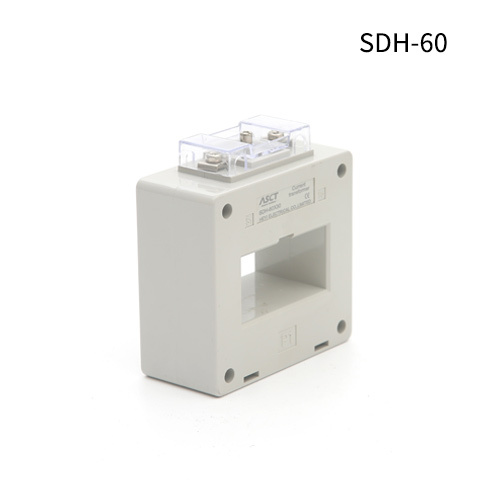

SDH-60 300/5A 5 5 50/60
400/5A 5 5 50/60
500/5A 5 5 50/60
600/5A 5 5 50/60
750/5A 5 5 50/60
800/5A 10 10 50/60
1000/5A 10 10 50/60
1200/5A 10 10 50/60



Type Ratio(A) Burden(VA) Frequency(Hz)
class:0.5 class:1.0

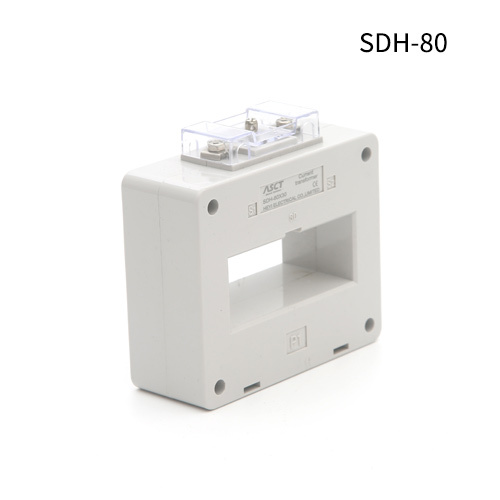

SDH-80 750/5A 5 5 50/60
800/5A 5 5 50/60
1000/5A 10 10 50/60
1200/5A 10 10 50/60
1500/5A 10 10 50/60
1600/5A 10 10 50/60
2000/5A 15 15 50/60



Type Ratio(A) Burden(VA) Frequency(Hz)
class:0.5 class:1.0
SDH-100 1000/5A 10 10 50/60
1200/5A 20 10 50/60
1500/5A 20 10 50/60
2000/5A 20 10 50/60
2500/5A 30 30 50/60
3000/5A 30 30 50/60



Type Ratio(A) Burden(VA) Frequency(Hz)
class:0.5 class:1.0
SDH-120 1500/5A 20 30 50/60
1600/5A 20 30 50/60
2000/5A 20 30 50/60
2500/5A 20 30 50/60
3000/5A 20 30 50/60
4000/5A 20 30 50/60



Dimensions



SDH-40 SDH-50
SDH-60 SDH-80
SDH-100 SDH-120



Accuracy test



Installation method
