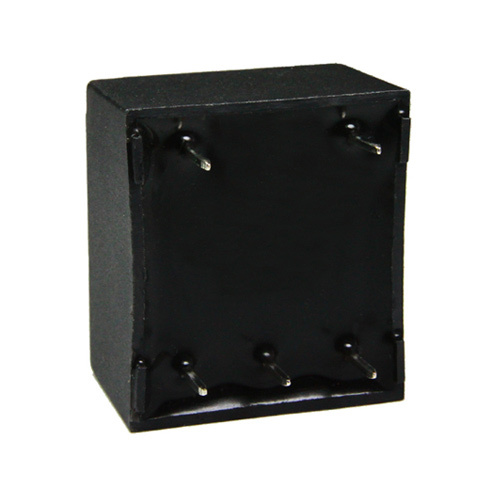

VS1 Type Voltage Sensor
VS1 Type Voltage Sensor VS1 Type Voltage Sensor VS1 Type Voltage Sensor
  • VS1 Type Voltage Sensor

VS1 Type Voltage Sensor

Item No.: VS1
VS1 series current mode voltage sensor is a device based on the principle of the hall effect, with a galvanic isolation between primary and secondary circuit.
Add to Inquiry
Description
Description
Introduce

VS1 series current mode voltage sensor is a device based on the principle of the hall effect, with a galvanic isolation between primary and secondary circuit. It provides accurate electronic measurement of DC AC or pulsed currents.

Applications
AC variable speed drives
Static converters for DC motor drives
Battery supplied applications
Uninterruptible Power Supplies (UPS)
Switched Mode Power Supplies (SMPS)
Power supplies for welding applications
Directions for use
1.The accuracy of sensor will be the best when the current passes through resister R1 and becomes the rated primary current, and therefore the current to be measured by sensor should comply with the primary current 10mA.
2.Samples： VIN=250V For example, VIN=250V:                                                                                                                                                                                                            （Accuracy ）=±0.8%ofVIN（＠Ta=+25℃）      a) R1=25KΩ /10W,IP =10mA                                                                                                                                            （Accuracy ）=±1.6%ofVIN（＠Ta=+25℃）      b) R1=50KΩ / 5W,IP =5mA
3. Considering resistance of primary coil (compared with R1 and temperature difference kept as low as possible) and electrical isolation within measure range (recommended), this sensor is suitable for measuring voltage.
Technical Parameter



Type VS1-5mA VS1-10mA Unit
Rated current（Ipn） 5 10 mA
Measure range（Ip） 7 14 mA
Turns ratio(Np/Ns) 5000：1000 2500：1000 T
Primary coil resister 650 200 Ω
Secondary coil resister 110 110 Ω
Measure resister 100～350 100～190 Ω
Rated output 25 25 mA
Supply voltage ±12，±15 V
Power Consumption ≤20+ IpX(Np/Ns) mA
Offset current @Ip=0                   ±0.2 mA
Offset drift @ -40～+85℃            ≤±0.5 mA
Linearity @Ip=0-±Ipn             ≤0.2 %FS
Response time ≤40 μS
Galvanic isolation @ 50HZ,AC,1min           2.5 KV



Dimensions



Mechanical dimension(for reference only) Effects of impulse noise

General date Value Unit
Operating temperature(TA) -40 to +85 ℃
Storage temperature(TS) -40 to +125 ℃
Mass(approx) (M) 22 g

Standards

UL94-V0.

EN60947-1:2004

IEC60950-1:2001

EN50178:1998

SJ 20790-2000
